HIP - CUP

HAC CERAFIT CUP

Design, production and commercialization of
high-tech orthopedic products

Prendre contact

PRODUCT INFORMATION

DESCRIPTION

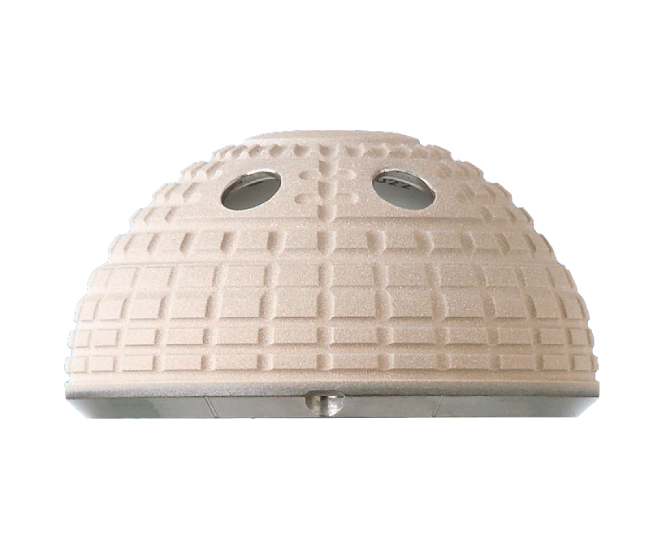

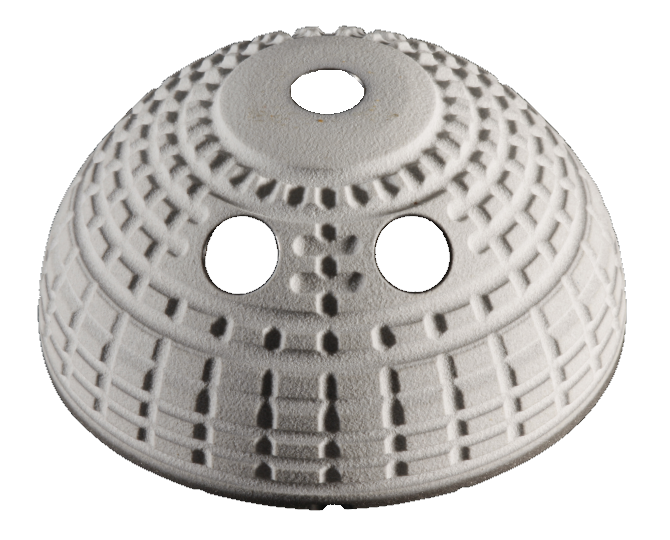

CEMENTLESS CUP

Material

  • Titanium Alloy TiAl6V4 (NF ISO 5832-3)
  • Rought (2µm Ra)
  • Hydroxyapatite coating (HAC) (NF ISO 13799-2 ; 3 ; 4)

Shape

  • « Triradius » Concept using since 1989 on CERAFIT Cup
    • Median area : nominal acetabulum radius
    • Equator : 1 mm peripheral build-up (equatorial press-fit)
    • Pole : slight flattening
  • Macrostructure to increase the bone contact surface
  • Two holes for additional acetabular screw fixation (optional)

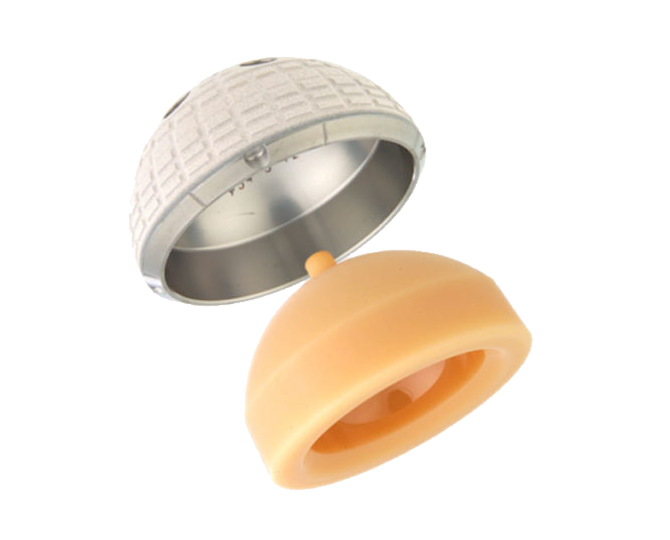

ALUMINA LINER

Material

  • Alumina ceramic (NF ISO 6474-1)

Shape

  • 5°42’ conical fitting, fixation method used by CERAVER since 1982
  • Extented conical connection allows optimal distribution of the loads, and provides higher mechanical strength
  • 6mm minimum thickness
  • Centering peg

Combined with

Alumina femoral heads with 28mm or 32mm diameter according to liner size.

POLYETHYLENE LINER - Standard Version

Material

  • Ultra High Molecular Weight Polyethylene (UHMWPE) (NF ISO 5834-2)

Shape

  • 5°42’ conical fitting
  • 7mm minimum thickness

POLYETHYLENE LINER - With Lip Version

Material

  • Ultra High Molecular Weight Polyethylene (UHMWPE) (NF ISO 5834-2)

Shape

  • Raised lip extending the portion of the sphere in order to prevent the risk of femoral head dislocation

RANGE

HAC CERAFIT Cup

Taille Cotyle 44 46 48 50 52 54 56 58 60 62 64 66 68
Références 4882* 4883* 4884 4885 4886 4887 4888 4889 4890 4891 4892* 4893* 4894*
Noyau Alumine
Diamètre interne (mm) Ø 28 4770* 4771
Ø 32 4772 4773 4774 4775 4776 4777
Noyau PE Standard
Diamètre interne (mm) Ø 22,2 2871* 2872*
Ø 28 2880* 2881 2882 2883 2884 2885 2886 2887
Ø 32 2888 2889 2890 2891 2892 2893
Noyau PE Antiluxation
Diamètre interne (mm) Ø 28 3020 3021 3022 3023 3024 3025 3026
Ø 32 3027 3028 3029 3030 3031 3032

ACETABULAR SCREW

Length 15 20 25 30 35 40 50 60
Cotyle Ø 42 a 48 Ø 5 11515 11520 11530 11540 11550 11560
Cotyle Ø 50 a 68 Ø 6,5 11615 11620 11625 11630 11635 11640 11650 11660

ALUMINA LINER

Taille 44 46 48 50 52 54 56 58 60 à 68
Diamètre interne (mm) Ø 28 4770* 4771
Ø 32 4772 4773 4774 4775 4776 4777

POLYETHYLENE LINER

Taille 42 44 46 48 50 52 54 56 58 60 à 68
Insert PE Standard
Diamètre Interne (mm) Ø 22,2 2871* 2870* 2872*
Ø 28 2880* 2881 2882 2883 2884 2885 2886 2887
Ø 32 2888 2889 2890 2891 2892 2893
Insert PE Antiluxation
Diamètre Interne (mm) Ø 28 3020 3021 3022 3023 3024 3025 3026
Ø 32 3027 3028 3029 3030 3031 3032
