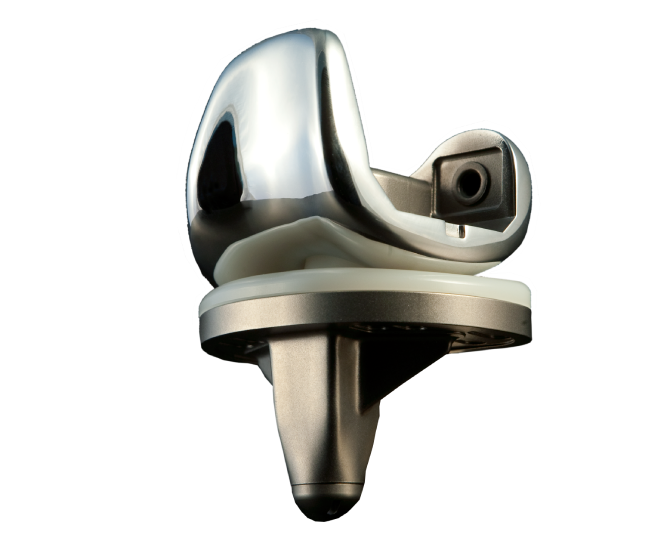

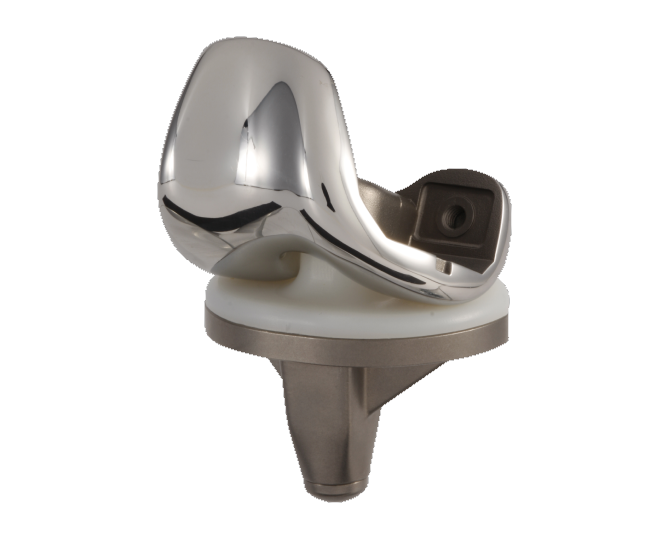

KNEE - TRICOMPARTIMENTAL
FIXED-BEARING POSTERO-STABILIZED HIFIT
Design, production and commercialization of
high-tech orthopedic products
Our products are not available in every country Please contact us
PRODUCT INFORMATION

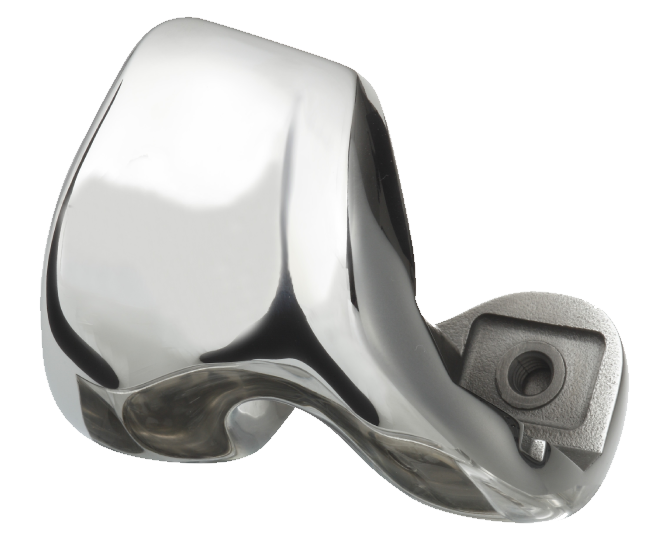

FEMORAL COMPONENT
Material
-
CoCrMo Alloy (NF ISO 5832-4)
Shape
- 10mm thickness of posterior condyles
- Near-anatomic trochlea
- Large size choice (9 right sizes and 9 left sizes)
- AP Progression of 2.5 mm

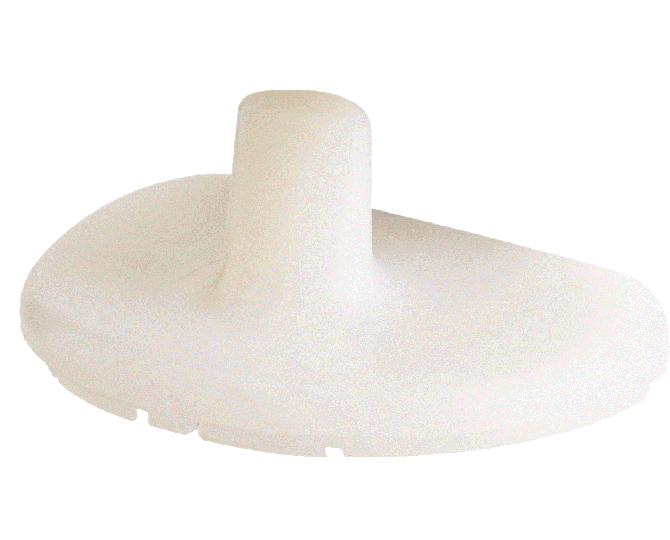

TIBIAL INSERT
Material
-
Ultra High Molecular Weight Polyethylene (UHMWPE) (NF ISO 5834-2)
Shape
- Circular section stabilization peg allowing unconstrained rotation of femoral component
- 6 sizes with up to 6 thicknesses by size

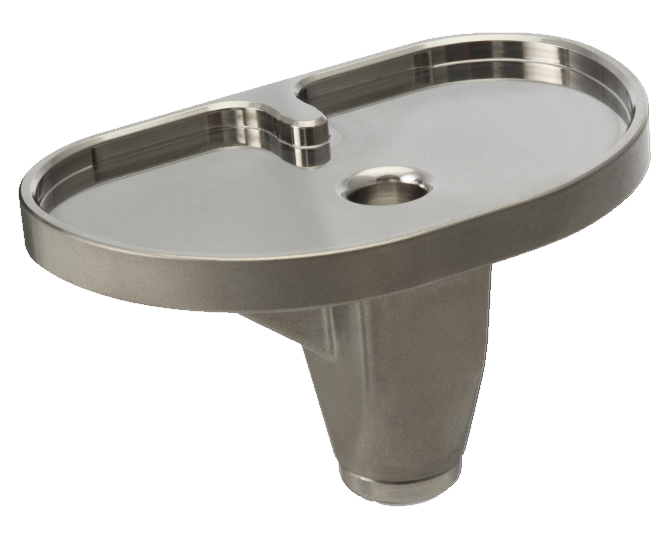

TIBIAL BASEPLATE
Material
-
Titanium alloy TiAl6V4 (NF ISO 5832-3)
Shape
- Chamfered posterior clipping in order to help the setting up
- Optimized anterior fixation mechanism for more than 20 years
- 6 right sizes and 6 left sizes
FEMORAL COMPONENT
| Size | 1* | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9* | |
|---|---|---|---|---|---|---|---|---|---|---|
| References | Right | 15601 | 15602 | 15603 | 15604 | 15605 | 15606 | 15607 | 15608 | 15609 |
| Left | 15501 | 15502 | 15503 | 15504 | 15505 | 15506 | 15507 | 15508 | 15509 | |
TIBIAL INSERT
| Size / Thickness | 7 | 9 | 11 | 13 | 15* | 17* | |
|---|---|---|---|---|---|---|---|
| A | Ø peg 17 | 15907 | 15909 | 15911 | 15913 | 15915 | |
| B | Ø peg 17 | 15927 | 15929 | 15931 | 15933 | 15935 | 15937 |
| C | Ø peg 17 | 15947 | 15949 | 15951 | 15953 | 15955 | 15957 |
| D | Ø peg 17 | 15987 | 15989 | 15991 | 15993 | 15995 | 15997 |
| C | Ø peg 22 | 15967 | 15969 | 15971 | 15973 | 15975 | 15977 |
| D | Ø peg 22 | 16007 | 16009 | 16011 | 16013 | 16015 | 16017 |
| E | Ø peg 22 | 16027 | 16029 | 16031 | 16033 | 16035 | 16037 |
| F | Ø peg 22 | 16047 | 16049 | 16051 | 16053 | 16055 | 16057 |
TIBIAL BASEPLATE
| Size | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| References | 15701 | 15703 | 15705 | 15707 | 15709 | 15711 |
PATELLAR COMPONENT
| Ø (mm) | 31 | 34 | 36 | 39 |
|---|---|---|---|---|
| Thickness | 8 mm | 9 mm | 10 mm | 11 mm |
| References | 5090 | 5091 | 5092 | 5093 |

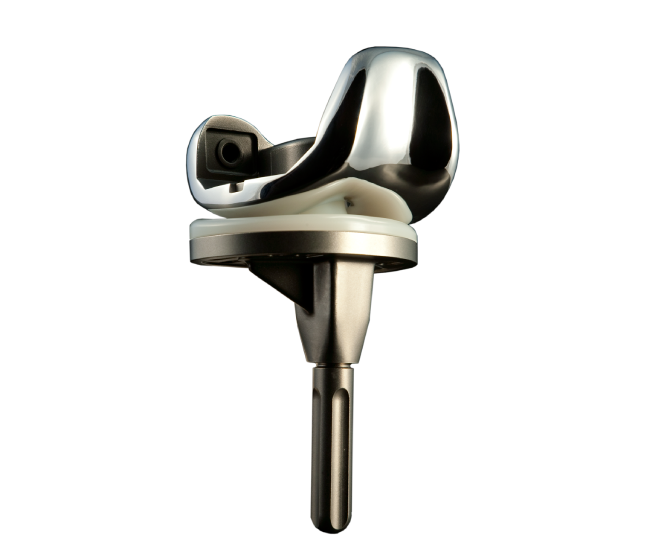

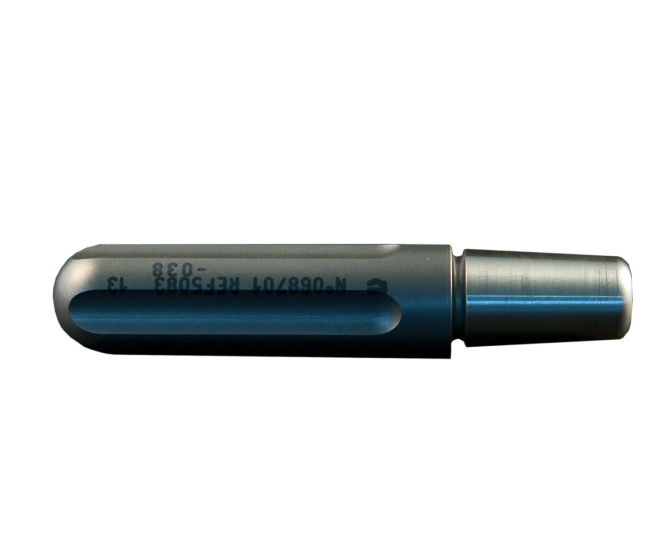

TIBIAL EXTENSION (L= 50 mm)
| Ø (mm) | Ø 10 | Ø 11 | Ø 12 | Ø 13 | Ø 14 | Ø 15 | Ø 16 | Ø 17 | Ø 18 | Ø 19 |
|---|---|---|---|---|---|---|---|---|---|---|
| References | 5080 | 5081 | 5082 | 5083 | 5084 | 5085 | 5086 | 5087 | 5088 | 5089 |
SCREW for Tibial extension
| Product reference | |
|---|---|
| Reference | 3051 |
* Available on request
